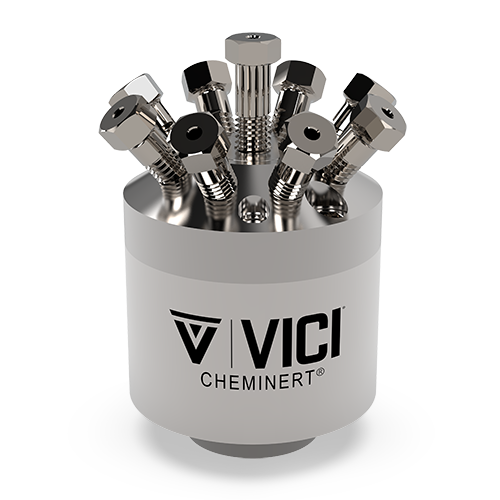

VICI Cheminert 1/16” 8 Position C5 Stream Selector Valve - .40 mm Bore, N60 SS Stator, Valcon H Rotor, 5000 psi liq at 75° C

VICI Cheminert 1/16” 8 Position C5 Stream Selector Valve - .40 mm Bore, N60 SS Stator, Valcon H Rotor, 5000 psi liq at 75° C

Part Number #C5H-2008D

$ 625.00 Sale • Save
Description

This is a replacement VICI Model C5 stream selector valve with eight positions and 1/16” fittings.It has a 0.016” (0.4 mm) bore size, is suitable for HPLC applications up to 5,000 psi liq at 75° C, and is compatible with manual and automated pneumatic or electric actuators.


The stator is made from Nitronic 60 (N60) stainless steel, a gall-resistant metal, and the rotor is made of Valcon H, a carbon-fiber-reinforced, PTFE-lubricated inert polymer designed for HPLC applications.

Valves include 1/16" stainless steel nuts and ferrules.

More Info

Which valve do I need?

TechNote 419: Implementation of Position Feedback Two Position Actuators

Materials of Construction

Tech Note 801: Cleaning and rotor replacement instructions



Spare Parts
