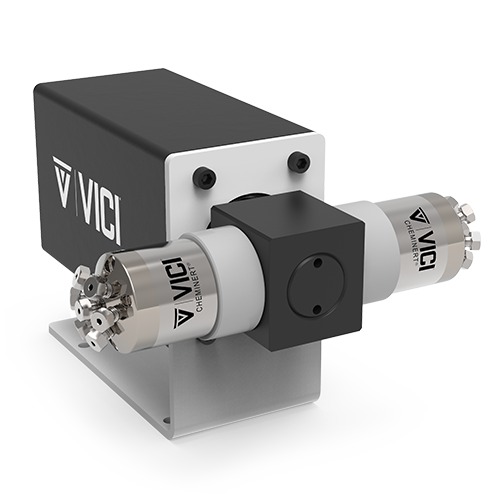

VICI Cheminert 1/16” 6 Position Column Selector System - .40 mm Bore, N60 Stator, Valcon H Rotor, 5000 psi liq at 75° C

This column selector system features two Model C5 stream selector valves mounted to a single universal actuator. It can be controlled manually with a remote logic level signal, or by a switchable RS-232/485 switchable);serial interface (cable included). RS-485 serial interface, USB, or BCD options are available by request. Columns not included.

The selectors have 0.016” (0.4 mm) bore size for use with 1/16” fittings up to 5,000 psi liq at 75° C.

The stator is made from Nitronic 60 (N60) stainless steel, a gall-resistant metal, and the rotor is made of Valcon H, a carbon-fiber-reinforced, PTFE-lubricated inert polymer designed for HPLC applications.

Includes stainless steel nuts and ferrules for both valves.
