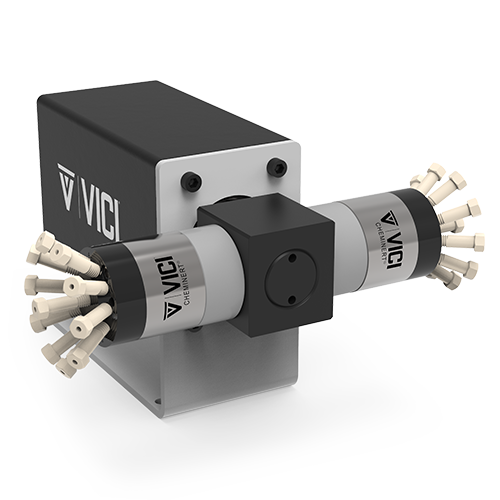

VICI Cheminert 1/16” 10 Position Column Selector Valve - .40 mm Bore, PAEK Stator, Valcon E Rotor, 5000 psi liq at 50° C

This column selector system features two Model C5 stream selector valves mounted to a single universal actuator. It can be controlled manually with a remote logic level signal, or by a switchable RS-232/485 switchable);serial interface (cable included). RS-485 serial interface, USB, or BCD options are available by request. Columns not included.

The selectors have 0.016” (0.4 mm) bore size for use with 1/16” fittings up to 5,000 psi liq at 50° C.

The valve stators are made of PAEK with rotors made of Valcon E, a polyaryletherketone/PTFE composite ideal for medium-temperature applications.

Includes PEEK nuts and ferrules for both valves.
