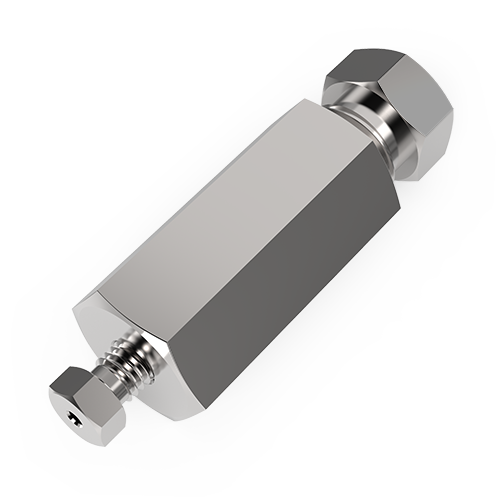

Internal Column End Fitting -for PCL412

Internal Column End Fitting -for PCL412

Part Number #CEF414.6

$ 49.50 Sale • Save
Description

The VICI Internal column end fitting is a replacement part for our Standard Precolumns (guard columns) 1/4" x 2 cm precolumn system (PCS412F)

All column end fittings are rated to 10,000 psi. However, the functional limit is dictated by the yield strength of the tubing used with the fitting.

Standard 1/4", 3/8", and 1/2" columns are usually packed at 8,000-10,000 psi, which is right at the yield strength for the tubing commonly used.

Columns with 1" ID have a yield strength of 6,000-8,000 psi, and the fitting will not hold if the system pressure exceeds that limit.

Dimensional Drawing

Spare Parts
